  1. State two factors that determine the speed of electrons emitted from a metal surface by light energy falling on it.

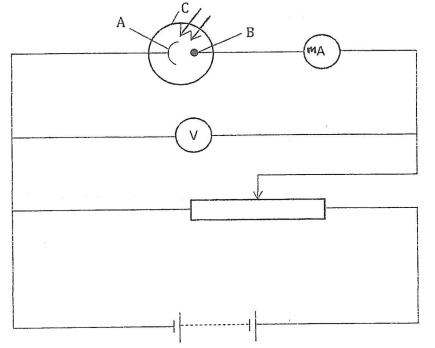

  2. The figure below shows the apparatus used to investigate photoelectric effect of a certain radiation.
    name the labelled parts A, B and C.
    Photoelectric effect of certain radiation
  3. A photosensitive cathode of work function 2.1ev is irradiated by a radiation of wave length, 4.5 x 10-7m(Take C = 3.0 x 108ms−1,h = 6.63x10-34JS and 1ev =1.6 x 10-19J.)
    Determine:
    The stopping potential on the cathode. (e = 1.6 x 10-19C)        (3 marks)

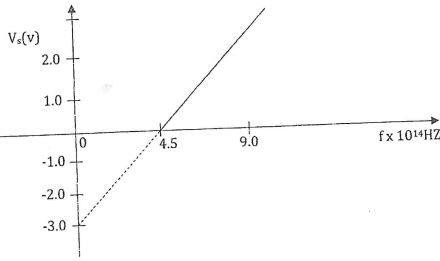

  4. The graph below shows the stopping potential against frequency of the incident radiation of different colours of light on a photocell.
    graph on stopping potential against frequency
    From the graph determine the threshold wave length.

1 Answer

0 votes
by
  1.
    1. Energy of the incident radiation
    2. Work function of the metal.
  2. A-Cathode
    B-Anode
    C-Photocell
  3. Vs =  0.6625
            1.6 × 10−19
    Vs= hc/ed −wo/e
    determining stopping potential on the cathode

  4. answer on threshold wave length calculation
