Introduction

Light is a form of energy. It enables us to see the surrounding objects. Light itself is not visible but its effect is felt by the eye.

Light is also very essential as a source of energy for the process by which plants make their own food (photosynthesis).

Sources of Light

Luminous (incandescent) source – these are objects that produce their own light e.g. sun, stars, burning candles, wood or charcoal, electric bulbs, television screens, glow worms e.t.c.

Non-luminous source – these are objects which do not produce light of their own. They are seen when light falling on them from luminous sources is reflected (bounces off their surfaces) e.g. the moon, planets, plants, people, books, walls, clothes e.t.c.

Rays and Beams of Light

A source of light produces pulses of energy which spread out in all directions. The path along which light energy travels is referred to as a ray of light. Rays are represented by lines with arrows on them to show the direction of travel.

A stream of light energy is called a beam. It is also considered to be a bundle of rays of light. Beams of light can be seen;

  • In the morning as the sunlight breaks through the clouds or leaves.
  • When a spotlight is shown in a smoky room or a car driven along a dusty road at night with its headlamps on.
  • When sunlight streams into a smoky dark room through a small opening

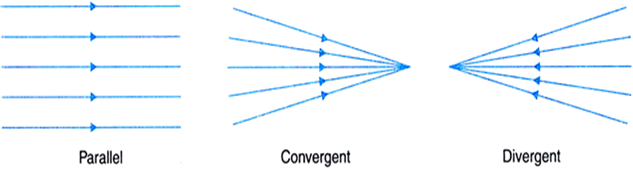

Types of Beams of Light

  1. Diverging beam
  2. Converging beam
  3. Parallel beam

Diverging beam – These are beams of light that appear to spread out (diverging) e.g. light from a spotlight.

diverging beam of light

Converging beam – these are beams which appear to collect (converge) to a point.

converging light beam

Parallel beam – are those beams which appear to be perfectly parallel to each other e.g. beam of light from the sun reaching the earth’s surface.

light beams

Opaque, Translucent and Tranparent Objects

OPAQUE – these are objects that do not allow light to pass through them at all e.g. brick walls, metals, wood, stones e.t.c.

TRANSLUCENT – these are objects that allow light to pass through but we cannot see through e.g. glass panes used in toilets and bathroom window and greased paper.

TRANSPARENT – these are objects which allow light to pass through and we see clearly through them e.g. car wind screen and ordinary window panes.



Rectilinear Propagation of Light

Light does not need a material medium to carry it. In a vacuum, the speed of light is 3.0 x 108m/s. Light from the sun reaches the earth having travelled mostly through a vacuum.

When light falls on an opaque object, it casts a shadow of the object with sharp edges on a screen behind it. This suggests that light travels in a straight line.

To investigate how light travels

Apparatus : three cardboards, source of light.

Arrange the apparatus as shown

rectilinear propagation of light

The cardboards are arranged such that holes are exactly in line.

Observation

When the holes in the three cardboards are in line, the eye can see the lamp.

However when the middle cardboard is displaced, the eye can no longer see the lamp.

Explanation

When the holes in the cardboards are in a straight line, light travels through the holes and the lamp is seen from the other side. When one of the cardboards is displaced, the beam of light is cut off and since light cannot bend to follow the displaced hole, the lamp cannot be seen.

Conclusion

Light travels in a straight line. This property is known as rectilinear propagation of light.



Shadows

Shadows are formed when an opaque object is on the path of light. The type of shadow formed depends on;

  1. The size of source of light.
  2. The size of opaque object.
  3. The distance between the object and the source of light.



1. To study the formation of shadows by a point source of light

Consider the set up below,

shadow from point source of light

Observation and Explanation

A uniformly and totally dark shadow is seen on the screen. This shadow is called umbra (Latin for shade)

The shadow has a sharp edge, supporting that light travels in straight lines.

2. To study the formation of shadows by extended (larger) source of light

Consider the set up below (source of light made larger)

shadow from extended light source

Observation

The centre of the shadow remains uniformly dark as before, but smaller in size.

The shadow is edged with a border of partial shadow called penumbra.

Explanation

The centre of the shadow still receives no light at all from the source. Light from some parts of the extended source of light reaches the centre parts of the shadow on the screen, but light from other parts is cut off by the opaque object, resulting in a partial shadow at the edges.

NOTE: Extended light source produce light that is much softer and without sharp edges.

Application

It is used in frosted light bulbs and lamp shades to provide a more a more pleasant lighting with less sharp edges.

3. To study the formation of shadows by extended (larger) source of light when object distance is changed

Consider the set ups below,

shadows near vs far from light source

Observations

When the ball is moved closer to the source, a ring of penumbra is formed. No umbra is seen.

When the ball is far away from the source, there is umbra surrounded by penumbra.

Explanation

The centre of the shadow receives light from the extended source. Since the object (ball) is smaller than the source of light, its umbra does not reach the screen because of the distance.

When the object is moved away from the source, the tip of the umbra reaches the screen.



Eclipse

An eclipse is a phenomenon of shadow formation which occurs once in a while.

It’s the total or partial disappearance of the sun or moon as seen from the earth.

Eclipses are explained in terms of relative positions of the earth, the moon and the sun.

The Phases of the Moon

At any given moment, about half the surface of the moon is lit by the sun while another half is in darkness.

The lighted part is bright enough to be seen easily at night from the earth and can be seen at day time. The darkened part is usually invisible.

When we look at the moon, we normally notice only the shape of the lighted part as shown below,

phases of the moon

Solar Eclipse (Eclipse of the Sun)

When the moon, revolving around the earth, comes in between the sun and the earth, the shadow of the moon is formed on the earth. This is called eclipse of the sun.

solar eclipse

Depending on the position of the moon, some parts of the earth lie in the region of umbra and some in the region of penumbra. Total eclipse occurs in the regions of umbra and partial eclipse in the regions of penumbra.

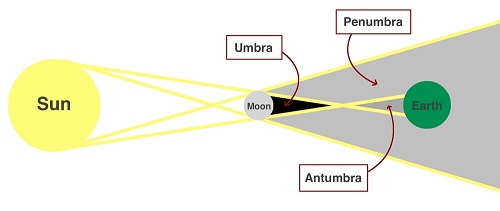

Annular Eclipse

Sometimes the umbra of the moon is not long enough to reach the earth because sometimes the distance between the moon and earth varies (the moon’s orbit is elliptical). When the moon is further away from the earth, its disc is slightly smaller than the sun’s disc. So when a solar eclipse occurs, the moon is not large enough to cover the sun totally. A bright ring of sunlight can be seen round the edge of the dark disc of the moon. This is called Annular or ring eclipse.

annular eclipse

Lunar Eclipse (Eclipse of the Moon)

The moon is a non luminous object. It can only be seen when light from the sun is incident on it. When we look at the moon, we see only the shape of the lighted portion. When the earth comes in between the sun and the moon, lunar eclipse occurs. Depending on the position of the moon, a total or partial eclipse of the moon will occur. Total lunar eclipse will occur if the moon is in the region of umbra and partial eclipse will occur if any part of the moon is in the region of penumbra as shown,

lunar eclipse full vs partial

A lunar eclipse occurs when the moon passes through the earth’s umbra.



Pinhole Camera

A pinhole camera consists of a box with pinhole on one side and a translucent screen on the opposite side. Light rays from an object pass through the pinhole and form an image on the screen as shown.

pinhole camera image formation

The image formed is real and is inverted. A pinhole camera has a large depth of focus i.e. objects that are far and near form focussed images on the screen.

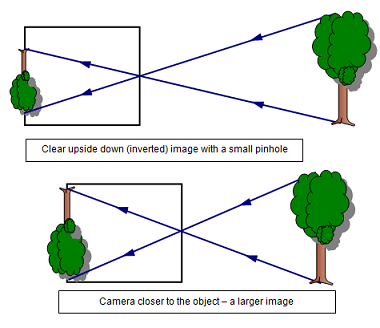

Characteristics of Images Formed on the Pinhole

Consider the sets below

pinhole camera close vs near images

When the object is near the pinhole, the image is larger.

When the object distance is increased from the pinhole the image is smaller.

When more holes are added close to the first pinhole, images of each point are seen overlapping on the screen as shown,

pin hole camera many holes

If the camera was made in such a way that it could be elongated by moving the screen farther away from pinhole but keeping the distance between the object and pinhole fixed, it could be seen that the image enlarges when length of the camera is increased and diminishes when the length of the camera is reduced.

Magnification

Magnification is the change in size of an image to that of the object or it’s the ratio of the height of the image and that of the object.

Magnification, m= height of image (hi)/height of object(ho)

Also,

Magnification, m= distance of image from pinhole (v)/distance of object from the pinhole(u)

Hence, hi/ho = v/u

Example

The distance between the pinhole and screen of a pinhole camera is 10cm. The height of the screen is 20cm. At what distance from the pinhole must a man 1.6m tall stand if a full length is required

hi = 20cm, ho=1.6m and v=10cm

M = hi/ho = v/u
= 0.2/1.6 = 0.1/u

u = 1.6 x 0.1/0.2 = 0.8m

Example

An object of height 5m is placed 10m away from a pinhole camera. Calculate

  1. The size of the image if it’s magnification is 0.01m
    M = hi/ho
    0.01 = hi/5
    hi = 0.05m
  2. The length of the pinhole camera.
    M = v/u
    0.01 = v/10
    v=0.1m (length of pinhole camera is 0.1m)

Exercise

  1. The length of pinhole camera is 25cm. An object 2m high is placed 10cm from the pinhole. Calculate the height of the image produced and its magnification.
    1. A pinhole camera of length 20cm is used to view the image of a tree of height 12m which is 40m from the pinhole. Calculate the height of the image of the tree obtained on the screen.
    2. If the pinhole is moved by 10m towards the tree, what will be the height of the tree on the screen?

Taking Photographs with a Pinhole Camera

The pinhole camera can be used to take still photographs if it is modified as follows,

  1. The box should be painted black to eliminate reflection of light.
  2. The translucent screen should be replaced by a light-tight lid with a photographic film fitted on the inside. The film should be fitted in a dark room.
  3. The pinhole should be covered with a thin black card which acts as a shutter.


Reflection of Light (Plane Surfaces)

All objects, except self luminous objects, become visible because they bounce light back to our eyes. This bouncing off light is called reflection.

There are two types of reflection namely regular and diffused reflections.

When light is reflected by a plane smooth surface, the reflection is regular (specular) and when reflection occurs at a rough surface it is called a diffused reflection.

Reflection by Plane Mirrors

A plane mirror is a flat smooth reflecting surface which forms images by regular reflection. It is often made by bounding a thin polished metal surface to the back of a flat sheet of glass or silvering the back side of the flat sheet of glass.

The silvered side is normally coated with some paint to protect the silver coating. If the clear and the silvered surfaces are in parallel plane, the mirror is called a plane mirror.

If the surfaces are curved, the mirror is called curved mirrors.

The silvered side of the mirror is shown by shading behind the reflecting surface.

Definition of Terms Used in Reflection

Consider the set up below,

terms used in reflection

Incident ray – is the ray that travels from the source to the reflecting surface.

Angle of incident (i) – is the angle between the incident ray and the normal.

Normal – is the line drawn perpendicularly at the point where the incident ray strikes the reflecting surface.

Reflected ray – is the ray that bounces from the reflecting surface.

Angle of reflection (r) – is the angle between the reflected ray and the normal.

Laws of Reflection

  1. The incident ray, the reflected ray and the normal at the point of incidence all lie on the same plane.
  2. The angle of incidence, i, equals the angle of reflection, r.

For the same incident ray, the angle of rotation of the reflected ray is twice the angle of rotation of the mirror.

Example

  1. A ray of light is incident along the normal in a plane mirror. The mirror is then rotated through an angle of 200. Calculate the angle between the first reflected ray and the second reflected ray.
    Angle of rotation of reflected rays = 2 x angle of rotation of the mirror
    =2 x 200=400
  2. A suspended plane mirror makes an angle of 20o with a wall. Light from a window strikes the mirror horizontally. Find;
    1. Angle of incidence.
    2. The angle between the horizontal and the reflected ray

Formation of Images by Plane Mirrors

Images formed is far behind the mirror as the object is in front of the mirror i.e. image distance is equal to object distance from the mirror

Characteristics of images formed by plane mirrors

  • Image formed is the same size as the object.
  • Images formed are laterally inverted e.g. when you raise your right hand, the image raises its left hand.
  • Virtual images – formed by rays that appear to come from the image. Such images are not formed on the screen as they are only imaginary.

Example

A girl stands 2m in front of a plane mirror.

  1. Calculate the distance between the girl and her image
    2+2 = 4m
  2. If the mirror is moved 0.6m to the girl, what will be the distance between her and image.
    Object distance =2-0.6 =1.4m
    Total distance = 1.4 + 1.4 = 2.8m



IMAGES FORMED BY MIRRORS AT AN ANGLE

When an angle θ is 90o, the number of images formed, n, is 3 i.e.

n = 360/90 − 1=3 images

When the angle θ is 60o, the number of images formed, n, is 5 i.e.

n = 360/600 − 1= 5 images

In general if the angle between two placed mirrors is θ, then the number of images formed, n, is given by,

n = 360/θ - 1

Example

  1. Two plane mirrors are kept inclined to each other at 120o. Calculate the number of images formed by the mirrors.
    n=360/120 − 1=2 images
  2. At what angle would the two mirrors inclined to form 17 images.
    17 = 360/θ - 1
    18θ=360
    θ=20o

Mirror parallel to each other

When the mirrors are parallel i.e. θ = 0o, the number of images is given by,

 n= 360/θ - 1=∞ (infinite number of images)

Example

  1. Two parallel plane mirrors are placed 30cm apart. An object placed between them 10cm from one mirror. Determine the image distance of two nearest images formed by each mirror.
    Solution
    Image distance = object distance
    Image distance on mirror 1= 10cm
    Image distance on mirror 2 = 20cm
  2. Two plane mirrors inclined at an angle 60o to each other. A ray of light makes an angle of 40o with mirror M1 and goes on to strike mirror M2. Find the angle of reflection on the second mirror M2.

Applications of Plane Mirrors

The kaleidoscope

A kaleidoscope or mirror scope is a device used to produce a series of beautiful symmetrical images. Two plane mirrors are placed at an angle of 60o inside a long tube.

The bottom of the tube is a ground glass plate for admitting light. On this plate is small scattered small pieces of brightly coloured glass, which act as objects.

When one looks down the tube, five images of the object are seen which together with the object form a symmetrical pattern in five sectors.

kaleidoscope

The instrument is used by designers to obtain ideas on systematic patterns.

The periscope

This is an instrument used to view objects over obstacles. It is used in submarines and also to watch over crowds. The images seen with the aid of the instrument are erect and virtual.

A periscope uses two plane mirrors kept parallel to each other and the polished surfaces facing each other. Each plane mirror makes an angle of 45o with the horizontal. Light from the object is turned through 900 at each mirror and reaches the eye as shown.

periscope image

The rays from the object are reflected by the top and then reflected again by the bottom into the observer. The image formed is virtual, upright and same size as the object.
