Kenya Certificate Of Secondary Education(KCSE 2013) Aviation Technology Paper 1 with Marking Scheme

SECTION A (44 marks)
Answer all the questions in this section.

Outline three roles of a ground controller in airport operations. (3 marks)
1. Explain two methods of controlling movement of tools in an aircraft hangar. (2 marks)
2. State four methods of alerting personnel in the event of fire outbreak. (2 marks)
State four reasons of using timber in aircraft construction. (2 marks)
Differentiate between the following:
1. airport and airfield; (2 marks)
2. runway and taxiway. (2 marks)
1. State four causes of flow change from laminar to turbulent on an aircraft wing. (2 marks)

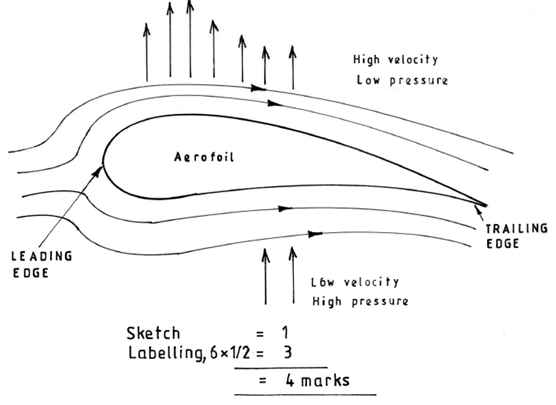

2. Use a labelled sketch to show how a lift is generated on an aerofoil. (4 marks)
Explain each of the following terms as applied to aircraft structure:
1. fairing; (1 mark)
2. monocoque; (1 mark)
3. rigging position; (1 mark)
4. winglet. (1 mark)

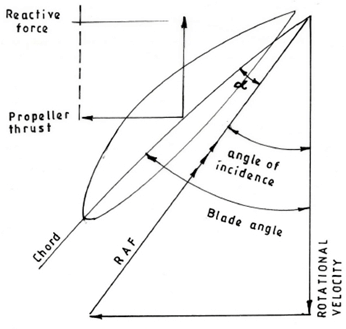

Use a labelled sketch to show the forces acting on an aircraft propeller blade during generation of thrust. (6 marks)
1. Explain two methods of preventing failure in an aircraft hydraulic system. (2 marks)
2. State the meaning and the function of each of the following aircraft flight systems:
  1. RMI (1 21 marks)
  2. DME (1 21 marks)
  3. ILS (1 21 marks)
Explain four advantages which make aluminium alloys best suited for aircraft fabrication. (4 marks)

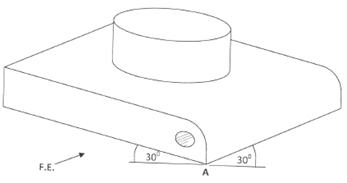

Figure 1 shows a bracket drawn in isometric projection.

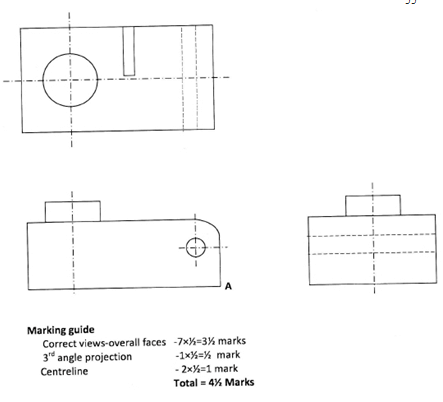

Sketch in good proportion the orthographic views of the bracket in third angle projection.

SECTION B (56 marks)
Answer any four questions from this section.
Candidates are advised to spend not more than 25 minutes on question 11.

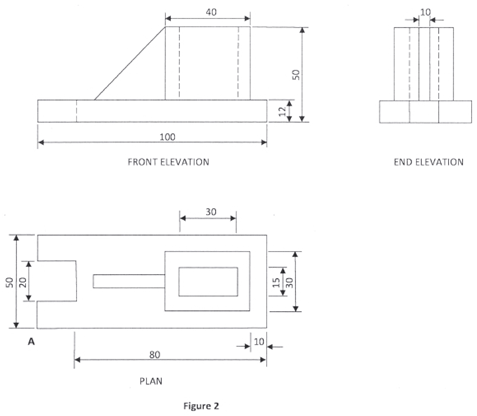

Figure 2 shows the three orthographic views of an aircraft engine bracket drawn in first angle projection.

On the isometric grid paper provided on page 10, draw the isometric view of the bracket taking A as the lowest point.(14 marks)
With the aid of pressure volume diagrams, describe the operation of the following aircraft engines:
1. aeropiston; (7 marks)
2. gas turbine. (7 marks)
1. With the aid of a labelled schematic diagram, explain the operation of a typical pneumatic emergency system. (10 marks)
2. State four reasons why a pneumatic system is preferred to hydraulic system. (4 marks)
1. Outline four functions of aircraft control tabs in flight. (4 marks)
2. With the aid of a labelled diagram, explain the operation of a spring servo tab in pitching mode. (10 marks)
1. State four advantages of flying an aircraft in the stratosphere layer. (4 marks)
2. Explain the meaning of each of the following markings on a runway:
  1. yellow on black; (1 mark)
  2. black on yellow; (1 mark)
  3. stop and yield; (1 mark)
  4. white on red. (1 mark)
3. An aircraft with wing span of 220m and a chord of 25m is flying at 850 KPH at sea level where the density is 1.225 kg/m2. If the lift and drag coefficients are 0.545 and 0.0075 respectively, determine:
  1. lift; (3 marks)
  2. drag. (3 marks)

MARKING SCHEME

Roles of a ground controller.
1. Directing all ground traffic in designated “movement areas”, except the traffic on runways.
2. Instruct vehicles and other equipments on which taxiways to use, which runway they will use (in the case of planes), where they will park and when it is safe to cross runways.
3. Handover planes ready to take off, to tower control, before entering the runway.
4. Take over control after a plan has landed after departing from the runway.
5. Brief the pilot on weather conditions and flight plan.
  Any (3 x 1 = 3 marks)
1. Methods of controlling movement of tools in an aircraft hangar:
  1. Inventory method to book out tools and note when missing.
  2. Shadow board or tools rack with designated space for specific tools. (2 x 1 = 2 marks)
2. Methods of alerting personnel in the event of fire outbreak.
  - Telephone using a special number allocated for fire calls.
  - Manual gongs fitted in the buildings for alerting occupant.
  - Electrically operated fire alarms which provide audible and visible warnings.
  - Automatic fire detectors fitted on high risk sites which activate audible and visible alarms incase of fire or smoke detection.
  - Shouting incase of fire.
Reasons of using timber in aircraft construction.
- It is easy to work with
- It can withstand repeated stress and vibrations
- It is good in sound- proofing
- It is light and strong
- It does not corrode.
1. An airport is a vast aviation area exclusively for commercial use for freight while an airfield is a relatively small area for private aviation base. (2 marks)
2. Runway is a surface provided in an airport for aircrafts to land on or take off from while a taxiway is used exclusively for aircraft ground manoeuvres. (2 marks)
1. Causes of flow change from lamina to turbulent.
  - Roughness of the surface.
  - Abrupt changes in direction - 90% bends
  - Shape - curvature determines how far separation occurs from leading edge.
  - Speed of the aircraft.
1. Fairing - Additional structures provided to any structure to reduce its drag.
2. Monocoque - is a type of fuselage structure in which all the load is taken by the skin.
3. Rigging position is positioning of the aircraft when the longitudinal and lateral axis of the aircraft are in horizontal plane for the purpose of coordinating the control surfaces.
4. Winglet is a small nearly vertical wing like surface usually of aerofoil section, attached to the wing tip. It is usually located rearward above the wing tip and is effective in reducing induced drag.
1. Methods of preventing failure in an aircraft hydraulic system.
  - Monitor the condition of all the system components for any impeding failure.
  - Monitor the fluid by checking contamination, level, aeration e.t.c. (2 x 1 = 2 marks)
2. Meaning of;
  1. RMI - Radial Magnetic indicator. It helps the pilot to find the direction to the airport or for navigation.
  2. DME - Distance Measuring Equipment. It is used to determine the distance to the VOR.
  3. ILS - Instrument Landing System. It is used in poor weather to find the runway and apply the correct approach at all times. (3 x 1 = 3 marks)
Advantages of aluminium.
1. Easy to work with: requires simple tools and processes, and does not require a temperature - controlled or dust-free environment, as with composites. Modern blind rivet fasteners have greatly simplified all-metal kit aircraft construction.
2. Malleability: easy to form into many shapes, with almost no limit to the shapes it can be formed into.
3. Environmentally friendly: no health hazards to worry about when working with sheet metal; recyclable.
4. Easy to inspect: Construction or materials flaws are easily detected, as are defective parts and damage.
5. Simple to repair: rivets and fasteners can be easily removed to replace damaged parts or sections, and individual parts can be replaced without having to replace or rework an entire airframe section.
6. Corrosive resistance.
7. Proven durability: high resistance to heat and moisture. (Any 4 x 1 = 4 marks)

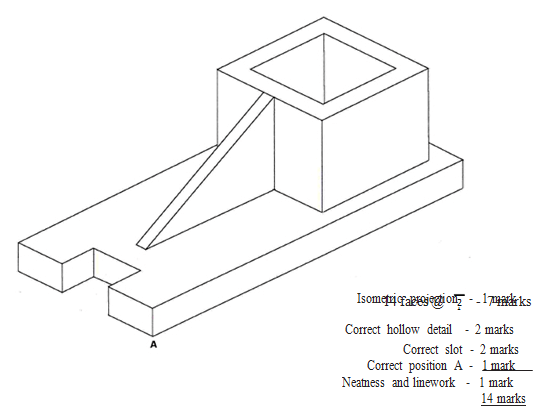

Isometric projection - 1 mark
1
Correct hollow detail - 2 marks
Correct slot - 2 marks
Correct position A - 1 mark
Neatness and linework - 1 mark
14 marks

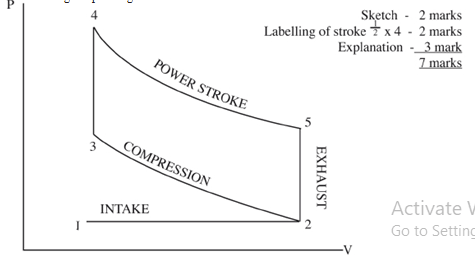

1. Piston Engine p-v diagram.

  1 - Intake/induction - beginning of the cycle TDC
  2 - End of induction stroke.
  2 -3 - Compression - decrease in volume and increase in pressure.
  3-4 - Ignition at constant volume. Pressure increases.
  4-5 - Expansion/power stroke - exhaust gas expand
  - Drop in pressure and increase in volume.
  5-6 - Exhaust gases are expelled. Pressure adjusts to the ambient. The cycle continues.
2. Jet engine p.v diagram

  Point 1 - Condition of air before being effected by inlet duct.
  Point 2 - Air condition at the entrance of the compressor.
  Point 2 -3 - Volume decreases and pressure increases.
  Point 3 - Fuel injection, rapid increase in volume and temperature. Pressure
  drops slightly as volume increases.
  Point 4 - Heated gases enter the turbine, energy is extracted. Decrease in both
  pressure and temperature.
  Point 5 -6 - Condition of the exhaust gases flow to ambient air.

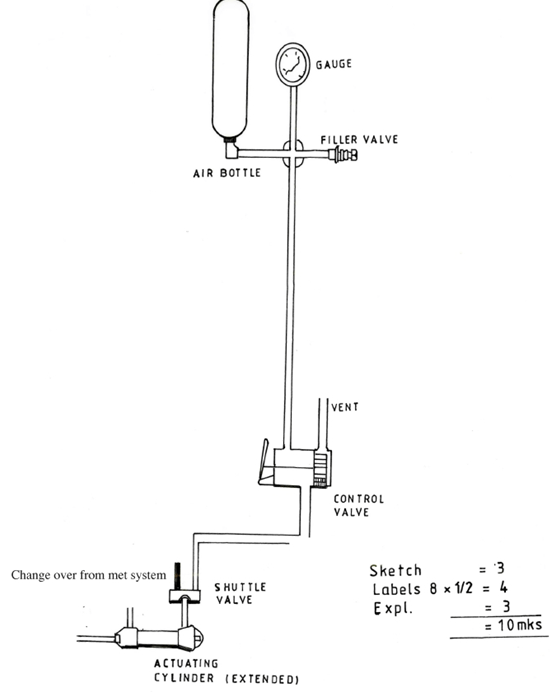

1. Generally, the storage bottle system is used only for emergency operation.
  1. This system has an air bottle, a control valve in the cockpit for releasing the contents of the cylinders, and a ground charge (filler) valve.
  2. The storage bottle must be filled with compressed air or nitrogen prior to flight.
  3. Air storage cylinder pneumatic systems are in use for emergency brakes, emergency landing gear extension, emergency flap extension, and for canopy release mechanisms.
  4. When the control valve is properly positioned, the compressed air in the storage bottle is routed through the shuttle valve to the actuating cylinder.
  5. The shuttle valve is a pressure-operated valve that separates the normal hydraulic system from the emergency pneumatic system.
  6. When the control handle is returned to the normal position, the air pressure in the lines is vented overboard through the vent port of the control valve. 6 x 21 = 3 marks
2. Reasons
  1. No return lines required hence lighter in weight
  2. Can withstand very high temperatures.
  3. Has provision for leaks without making the system ineffective.
  4. Does not attack metals to corrode the system.
  5. Air is available in abundance. 4 x 1 = 4 marks
1. Functions of aircraft control tabs.
  1. To ensure the aircraft flies straight and level.
  2. To augment the effort required by the pilot to move large and heavy control surfaces.
  3. To oppose the pilot by increasing the effort required by the pilot to move primary control surfaces and give feel in power assisted controls.
  4. To relieve the pilot from holding on the controls (stick free) during repetitive manoeuvres such as circling. (4 x 1 = 4 marks)

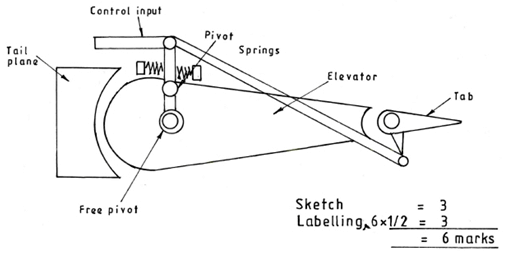

2. Servo-tabs
  1. These tabs are connected directly to the cockpit controls and the tab can be made to apply the hinge moment required to move the control surface. The pilot’s control input deflects the tab and the moment produced about the hinge line of the control surface causes this surface to “float” to its position of equilibrium.
  2. The floating control will then produce the required moment about the CG of the aircraft. The stick forces involved are only those arising from the hinge moments acting on the tab, which are much less than those on the main control surface.
  3. Movement of the input rod deflects the tab against spring tension. The input force is transmitted through the spring to the control surface, which moves as a result of the combined effect of input force and aerodynamic assistance provided by the tab.
  4. The amount of servo-action depends on the rate (strength) of the spring employed. It can be seen that an infinitely strong spring produces no assistance from the tab whereas an infinitely weak spring causes the tab to behave as a servo-tab.
  5. The spring tabs may be pre-loaded to prevent them from coming into operation until the stick (or rudder) force exceeds a predetermined value. This is done to keep the spring tab out of action at low speeds, thus avoiding excessive lightening and lack of feel.
    When loads are excessive at increase of speed the spring is compressed to return the aircraft.
  6. On sensing any load differences, the spring returns the aircraft automatically.
    (Any 4 x 1 = 4 marks)
1. Advantages of flying aircraft in the stratosphere layer:
  1. No terrain hence easier to fly.
  2. Temperature is constant for wide range.
  3. Better fuel consumption.
  4. No clouds hence better engine performance.
  5. No risk of thunder or lightning.
  6. Doesn’t require clearance since it is international space. (4 x 1 = 4 marks)
2. 1. Yellow on black identifies the runway or taxiway currently on or entering.
  2. Black on yellow identifies the intersecting taxiways the aircraft is approaching with an arrow indicating the direction to turn.
  3. Stop and yield - Many airports use conventional traffic signs indicating the aircraft or vehicles should stop or give way until cleared to proceed by ground controllers.
  4. White on red shows entrances to runways or critical areas. Vehicles and aircraft are required to stop at these signs until the control tower gives clearance to proceed. (4 x 1 = 4 marks)
3. Lift
  V= 850 x 1000
  60 x 60
  = 236.1 m/s 1
  = 102,342,792 N
  Drag D = 2pV₂SCp
  D = ½ x 1.225 x 236.1 x 550 x 0.0075
  = 1,408,387 N
