KCSE 2015 Drawing and Design Paper 1 with Marking Scheme

Share via Whatsapp

MARKING SCHEME

  1.
    1.
      • Ability to identify business opportunity.
      • Ability to mobilize or get resources.
      • Ability to start and run a business.
      • ability to pursue self employment
      • Ability to solve problems
      • Ability to take risks
        (3 x 1 = 3 marks)
    2.
      • for draughting / design
      • reference / research
      • storage
      • editing
      • sharing / dissemination
      • display / view
      • printing
      • drawing
        (= 2 marks)
  2.
    1.
      • conical / pointed for drawing visible outlines
      • chisel - construction of lines, circles and arcs.
        = (2 marks)
    2.
      • Uniformity in height / use of guide lines
      • proportionality
      • strength of lines/outlines
      • spacing of words / letters
      • consistency is style (either upright or slanting)
        = 2 marks
  3.

    1. 1
      5 correctly indicated grains
      direction 5 x ½= 2½
    2. Design situation is the need to solve a problem, while design a brief is a written statement which indicates the how the problem is be solved and what is to be designed.
      design situation - 1x1 = 1
      design brief - 2 x 1 = 2
      3 marks
  4.
    1.
      1. Item number
      2. Description Material
      3. No. off / number required
      4. Title
      5. Number of components required
        (2 marks)

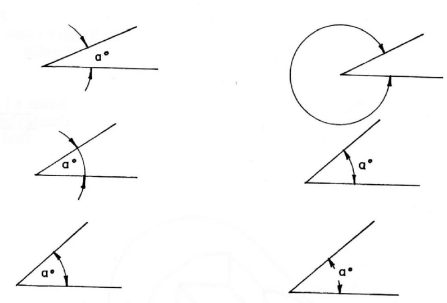

    2. 2
      (2 marks)

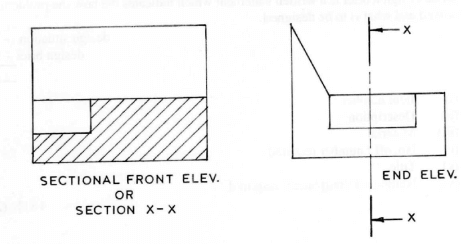

  5. 3
    Front elev.

    3 faces x 1 mark = 1 mark
    Hatching ½ = ½ mark
    End elev.
    2 faces x 1 = 2 marks
    Cutting plan = ½ mark
    Total = 6 marks

  6. 4
    Any 8 faces x ½ = 4 marks
    projection = 1 mark
    Line work / neatness = 1 mark
    6 marks

  7. 5
    Interpretation of scale reduction - 1 mark
    Divisions - 1 mark
    Projection - 1 mark
    Final drawing - 1 mark
    Total = 4 marks

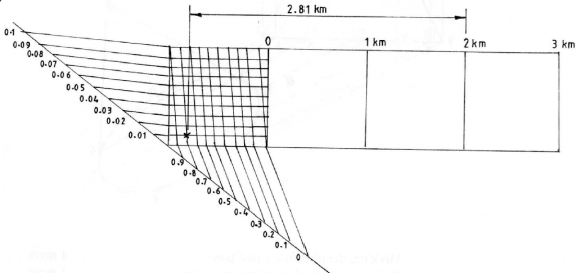

  8. 6
    Determining the 4km length - 1 mark
    Labelling of scale 0 - 3 km - 1 mark
    Construction of diagonal scale
    Horizontal - 1 mark
    Vertical - 1 mark
    Diagonal - 1 mark
    Indication of 2.81 km reading
    6 marks

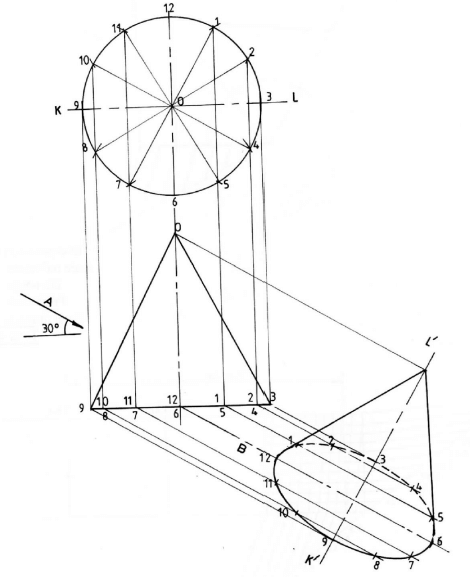

  9. 7
    • Dividing the plan into equal parts
    • Projection from plan to front view base
    • Projection from front (base & apex) to Aux view
    • Determining centre line of Aux. view I to projections
    • Transfer parts from plan to auxilliary base
    • Joining the parts to form a smooth curve
    • Showing ✓ hidden details
      Total = 6 marks

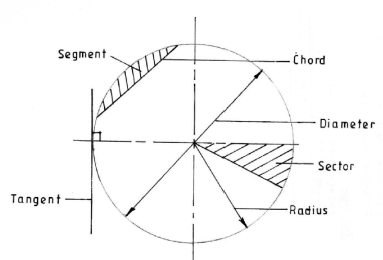

  10.
    8

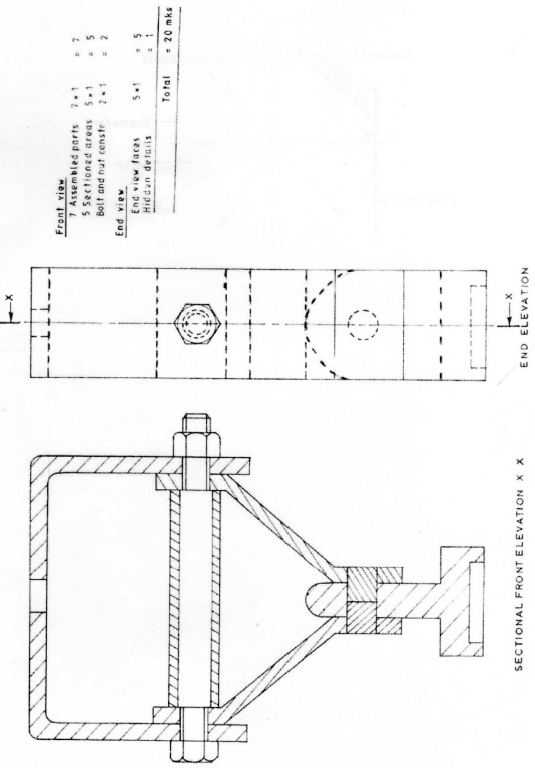

  11.
    9
  12.
    10
    • Copying the figure - 4 links x ½
    • Circle
    • Division of circle
    • Projection of PV's to XY
    • Marking of point T
    • Projecting of TV from point T
    • Locating of different positions of V
    • Joining the points of V to form a smooth curve
      Total = 15 marks

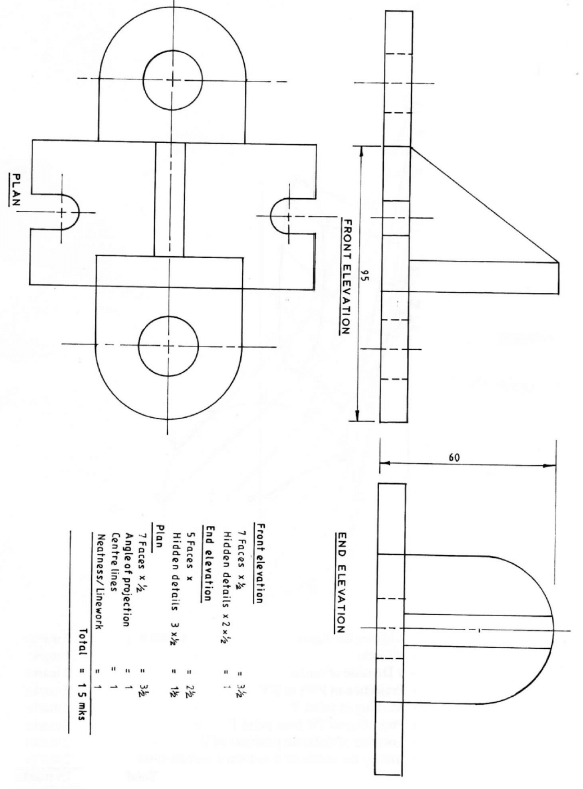

  13.
    11

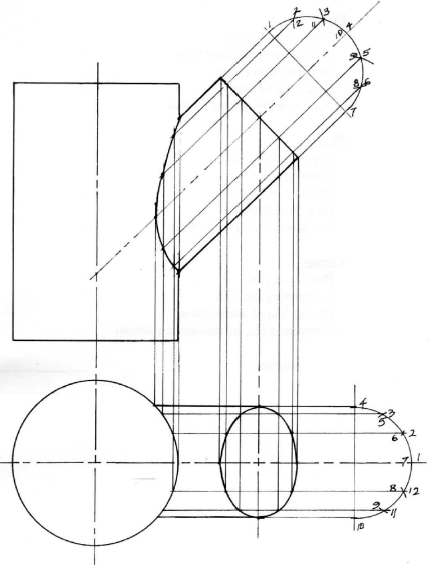

  14. 12
    Front
    • Copying the figure
    • Semicircle / auxilliary view
    • Dividing semi circle
    • Projection to front
    • Projection from front to plan

      Plan

    • Copying the figure
    • Semicircle
    • Dividing semi circle
    • Projection to plan
    • Projection from plan to front

      Curves

    • Plotting at plan
    • Completing the plan
    • Plating line of intersection
    • Competing line of intersection infront
    • Neatness
      Total = 15 marks
