QUESTIONS

STATION I

In the space provided below, sketch in good proportion a sectional longitudinal view of a sparking plug and label four main parts. (10 marks)

STATION 2

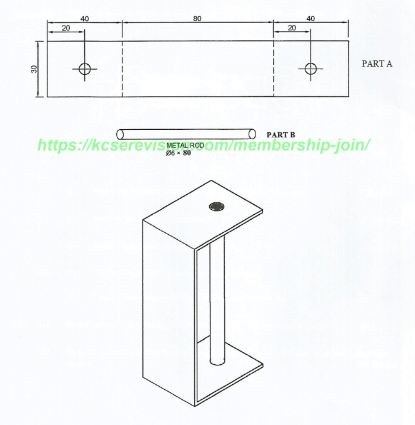

Using the tools and materials provided, make the bracket shown in the figure below. (10 marks)
st 2

STATION 3

Identify the vehicle parts labelled A, B, C, D and E and state the vehicle system in which each is used. Name the material each part is made of and state the use of each part in the vehicle. Complete the table. (10 marks)

Label Name Vehicle system Material Cause
A
B
C
C
D



STATION 4

On the single cylinder engine provided:

  1. perform the pre start up checks
  2. start the engine and adjust to attain the smoothest idling speed (10 marks)

    LET THE EXAMINER CHECK YOUR WORK

STATION 5

Using the tools and materials provided, connect a twin headlight parallel circuit controlled by a single switch. (10 marks)

LET THE EXAMINER CHECK YOUR WORK

STATION 6

Identify the engine parts labelled F, G, H, J and K. In each case, identify one defect and state one possible cause and one possible effect of the identified defect. Complete the table. (10 marks)

Label Name Defect Cause Effect
F
G
H
J
K



STATION 7

On the brake drum of the motor vehicle provided, perform each of the following tasks.

  1. remove the retum spring
  2. measure the tension of the spring
  3. replace the return spring (10 marks)
    LET THE EXAMINER CHECK YOUR WORK

STATION 8

Identify each of the following tools and substances labelled Q to Z und in each case, state one use in a motor vehicle. Complete the table.

Label Name Use
Q
R
S
T
U
V
W
X
Y
Z



STATION 9

Using the oxy-acetylene equipment provided, braze the hole identified by the examiner on the vehicle part provided.
(10 marks)

LET THE EXAMINER CHECK YOUR WORK.

STATION 10
On the multi-cylinder engine provided, demonstrate to the examiner how to identify a misfiring plug.

LET THE EXAMINER CHECK YOUR WORK. (10 marks)

MARKING SCHEME

STATION 1
st1

Correct sketch (6 main parts: 6 x 1⁄2)-3
Correct sectioning (Any 3 x 1)-3
Longitudinal=1
Labelling (Any 4x 1⁄2)=2
Quality of hatching=1
TOTAL10 marks

STATION 3

PART NAME VEHICLE SYSTEM MATERIAL USE
A Radiator cooling Plastic Reserves
overflow coolan
B Wheel valve cap wheels and tyres rubber   prevent pressure leakage
C Air cleaner
element
fuel system paper cartilage filtering dirt particles
D ignition resistor ignition system porcelain and copper reduces battery voltage (12 V) to coil voltage (6V)
E sump lubrication system pressed steel (low carbon steel) holding oil


STATION 6

LABEL NAME DEFECT CAUSE EFFECT
F spring washer flattened excess torqueing
misuse
loss of torque loading
nuts can work loose
G piston ring excess  prolong wear
breakage
loss of engine power
engine miss
H shell bearing worn out or cracked poor lubrication
prolonged usage
poor sealing
poor lubrication
J fuel tank cap cracked or perforated carelessness loss of fuel through evaporation
risking (danger of fire outbrea
K gear broken
tooth
lack od lubrication
misuse
noisy transmission
poor/weak transmission


STATION 8

LABEL NAME USE
Q tyre tube valve key to tighten tyre valve
R chuck key to tighten and loosen twist drills
S universal joint to facilitate access to bolts/nuts in areas not easily accessible
T tap holder to hold taps when cutting internal threads
U welding gas nozzle to direct welding flames to the point of impact
V grease for lubrication of joints
W vaseline to cover battery terminals
X silicon to seal hoses in cooling system
Y hard solder bar to clean surfaces being soldered
Z lapping paste to help valve faces and seats
